REACT 350® Wide

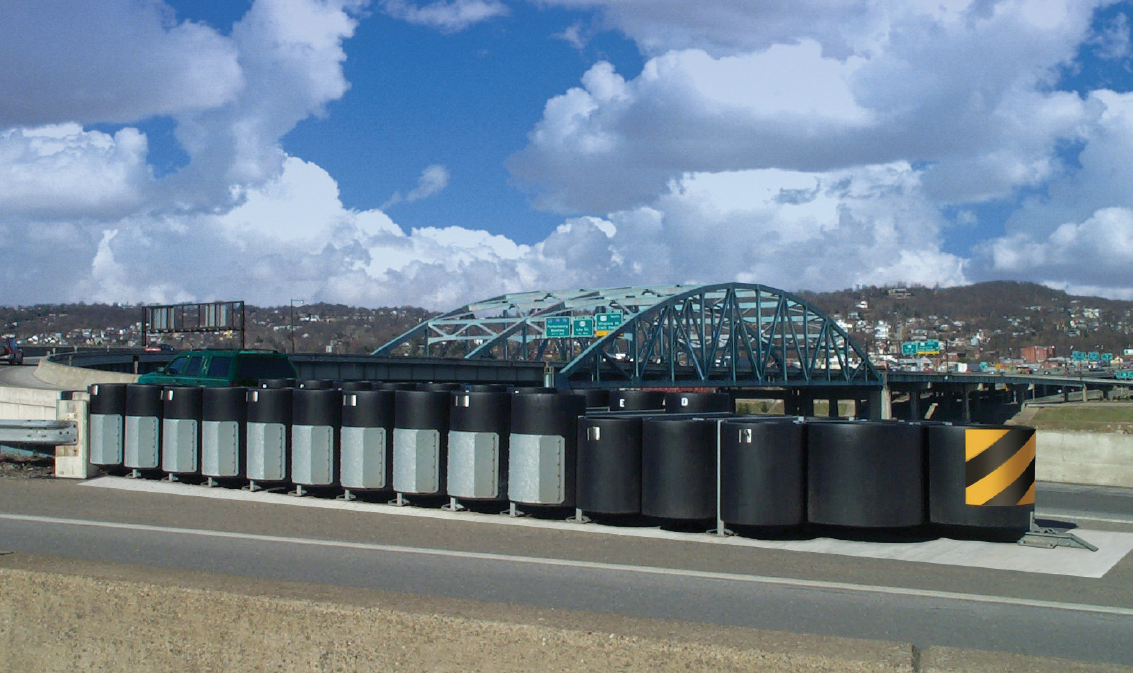

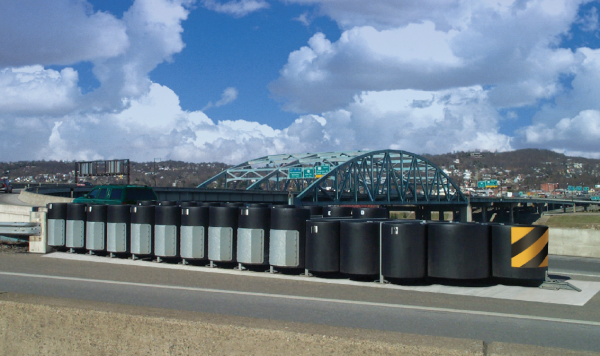

The REACT 350® Wide is a redirective, non-gating crash cushion that consists of High Molecular Weight/High Density Polyethylene (HMW/HDPE) cylinders. It is tested to NCHRP Report 350 Test Level 1, Test Level 2, and Test Level 3.

The REACT 350® Wide crash cushion can be used to shield fixed objects with three system widths of 60″ (1.525 m), 96″ (2.440 m), and 120″ (3.050 m).

Product Inquiry Form

Features

  • Sectional construction with energy-absorbing, potentially reusable HMW/HDPE cylinders.*
  • Systems available for various lengths, widths, and speeds.
  • Delivered preassembled.
  • Optional cylinder covers available.
  • Monorail base designed to help provide lateral strength.



The system has shown self-restoring characteristics and may regain much of its original shape and capacity when impacted within NCHRP Report 350 crash test standards.*



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Assembly & Maintenance

  • Installs on new or existing concrete pad.
  • Anchorage options include asphalt, concrete, and soil-drive pile.
  • Major components are potentially reusable when impacted within NCHRP Report 350 crash test standards.*



Back-Up Structure and Attachments

  • Self-contained backup structure
  • Concrete barrier(s)
  • Bridge pier(s)
  • Bridge parapet(s)
  • Square Block(s)



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Specifications

Typical 60″ Width at Backup Shown

(Available in widths of 60″, 96″, & 120″)

  • 30′ 10″ Long (9.4 m) Self-Contained Backup Structure
  • 30′ 7″ Long (9.2 m) Concrete Backup Structure

Product Images

Product Documents

PI Sheet

REACT 350® Wide

Manuals

REACT 350® Wide Product Description Manual
REACT 350® Wide-60”-96”-120” Assembly Manual
