RAPTOR®

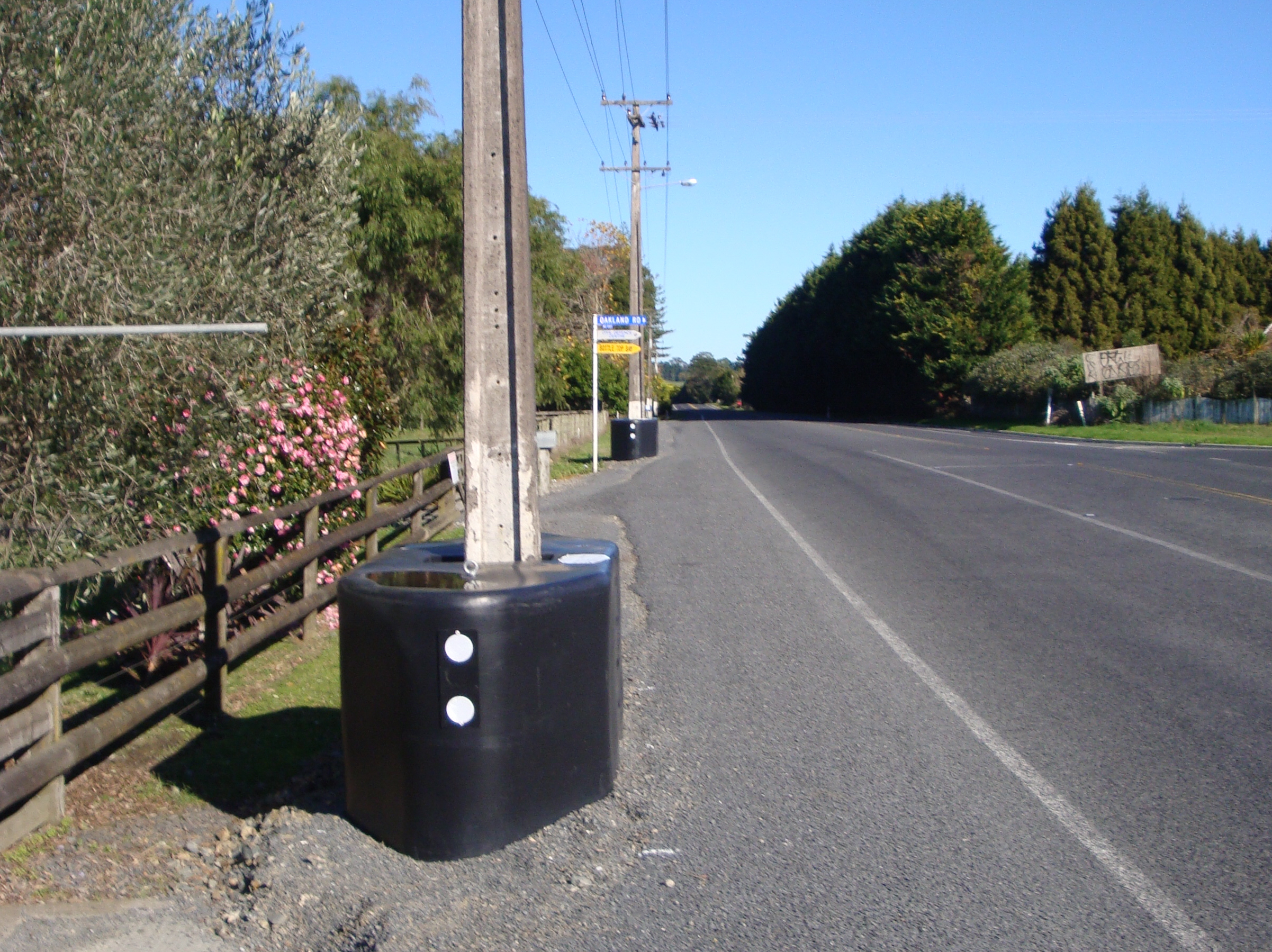

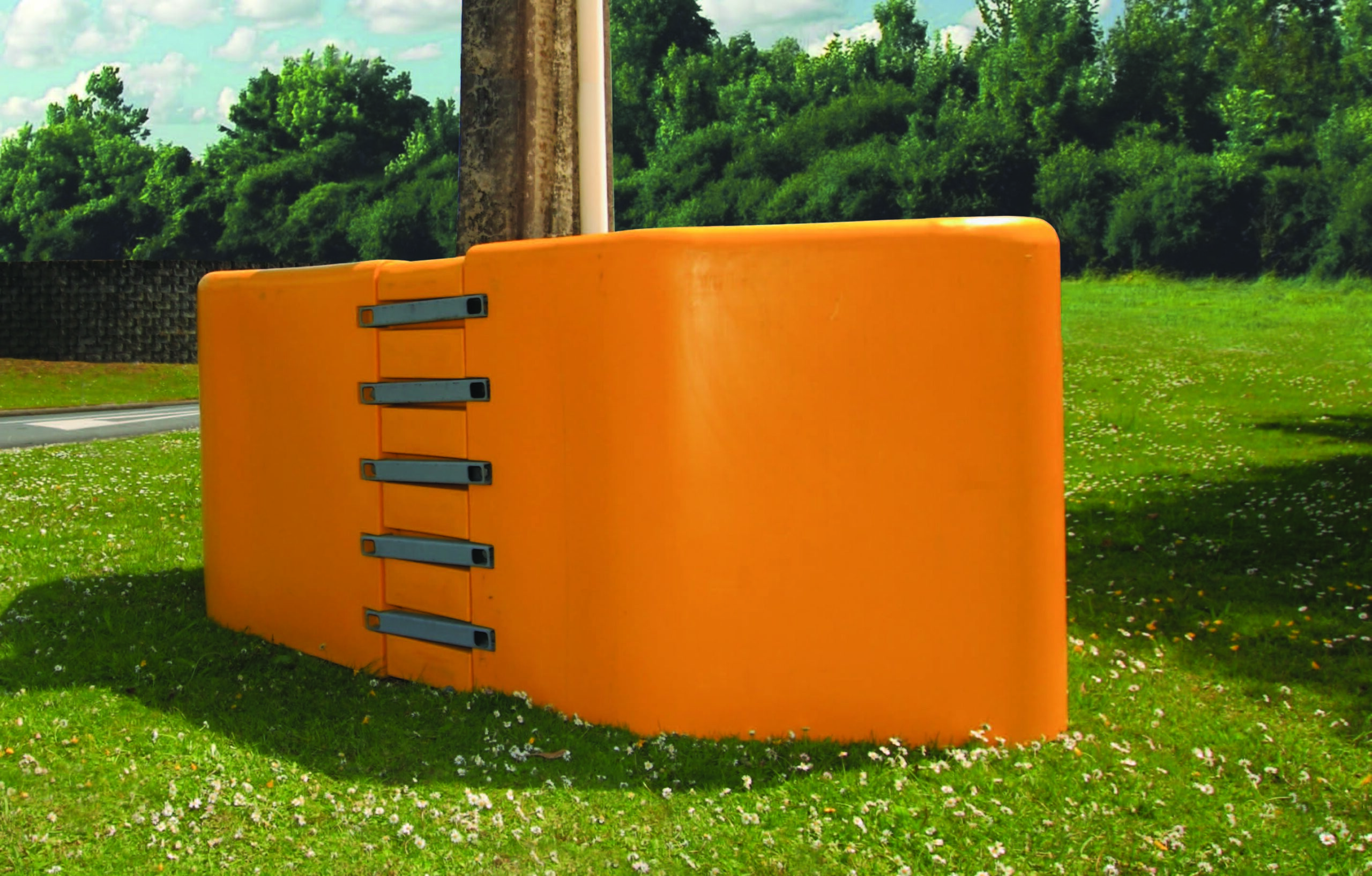

The RAPTOR ® is a compact crash cushion made from durable HDPE which can be installed at sites that are lacking space to protect objects in the traditional manner. The system consists of 2 pieces which connect together and provide protection from a rigid object such as a pole or tree that is positioned within the central void. The RAPTOR® 600 has been tested to MASH Test Level 1.

Product Inquiry Form

Features

  • Reduces the severity of vehicle impacts against poles and trees.
  • Available in black or yellow.
  • Two sizes available to fit multiple hazard widths.
  • Non-impacted side is typically reusable.



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Assembly & Maintenance

  • Typically installs in under 30 minutes.
  • Two sizes available to fit multiple hazard widths.
  • No anchoring required.
  • Zero maintenance required, other than routine inspection.



Specifications

RAPTOR ® 300
•8′ 1″ (2.46 m) Long
•3′ 9″ (1.15 m) Wide
•3′ 5″ (1.05 m) High
•12″ x 23″ (300 mm x 590 mm) Void
•485 lbs. (220 kg) System Weight

RAPTOR® 600
•9′ 1″ (2.76 m) Long
•3′ 9″ (1.15 m) Wide
•3′ 5″ (1.05 m) High
•24″ x 23″ (600 mm x 590 mm) Void
•538 lbs. (244 kg) System Weight

Product Images

Product Documents

PI Sheet

RAPTOR®

Manuals

RAPTOR® Product Manual
