NOVUSTM 100

The NOVUS TM 100 is a redirective, non-gating, energy-absorbing crash cushion tested to the Manual for Safety Hardware (MASH) Test Level 3. It can be used for unidirectional or bidirectional applications to shield fixed objects. Ideal for temporary or permanent installations.

Product Inquiry Form

Features

  • Durable, galvanized all-steel construction.
  • Uses only 33 anchors.
  • Self-contained backup.
  • Basetrack guide stabilizers.
  • Anchorage in concrete and asphalt.
  • High-strength steel panels.

Assembly & Maintenance

  • Damaged side panels are replaceable.
  • Units arrive assembled.
  • Potentially reusable after an impact within MASH crash test standards.*



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Specifications

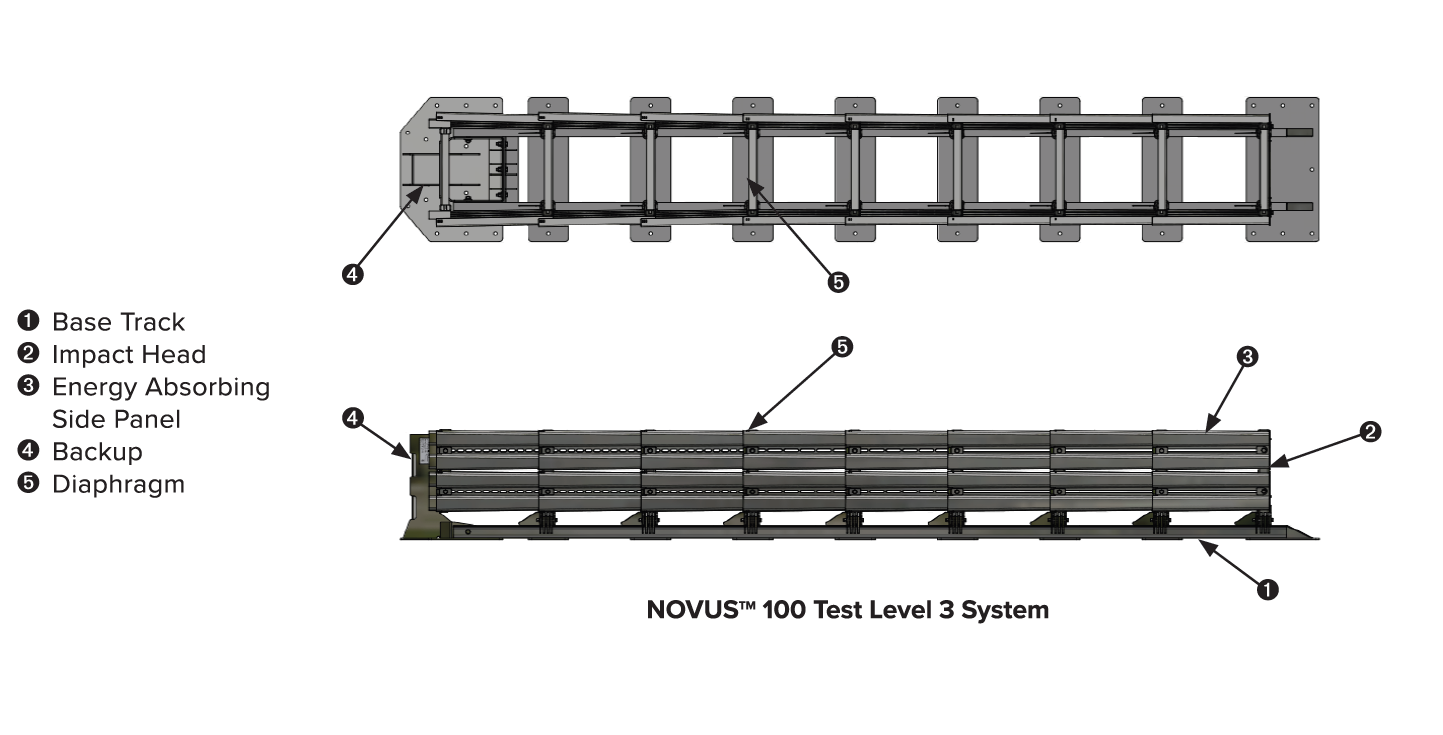

NOVUSTM 100 Test Level 3 System

• System Length – 21′ (6.4 m)
• System Width – 26″ (660 mm)
• System Height – 34 3/4″ (883 mm)
• System Weight – 3,800 lbs. (1,723.6 kg) (approx)

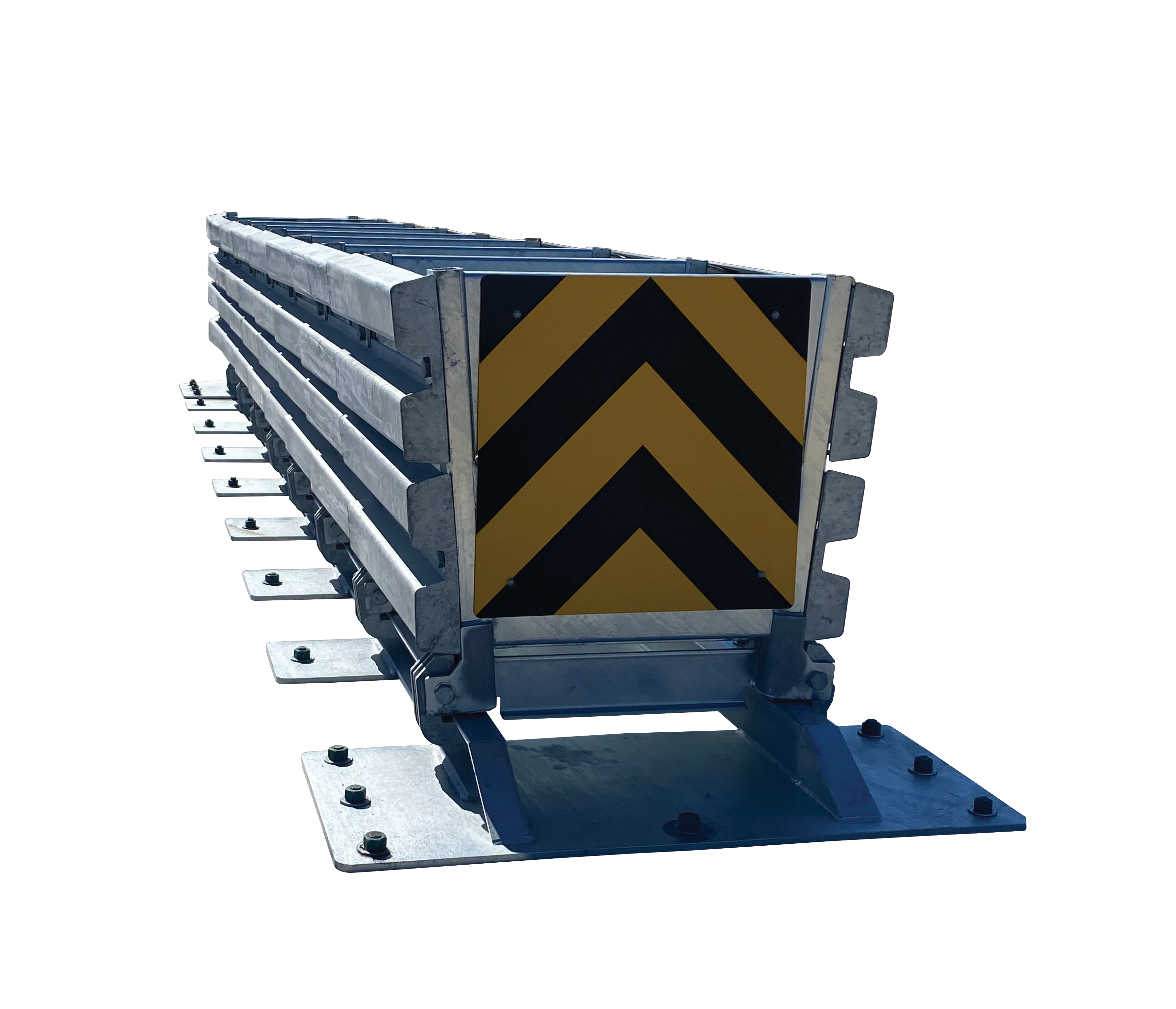

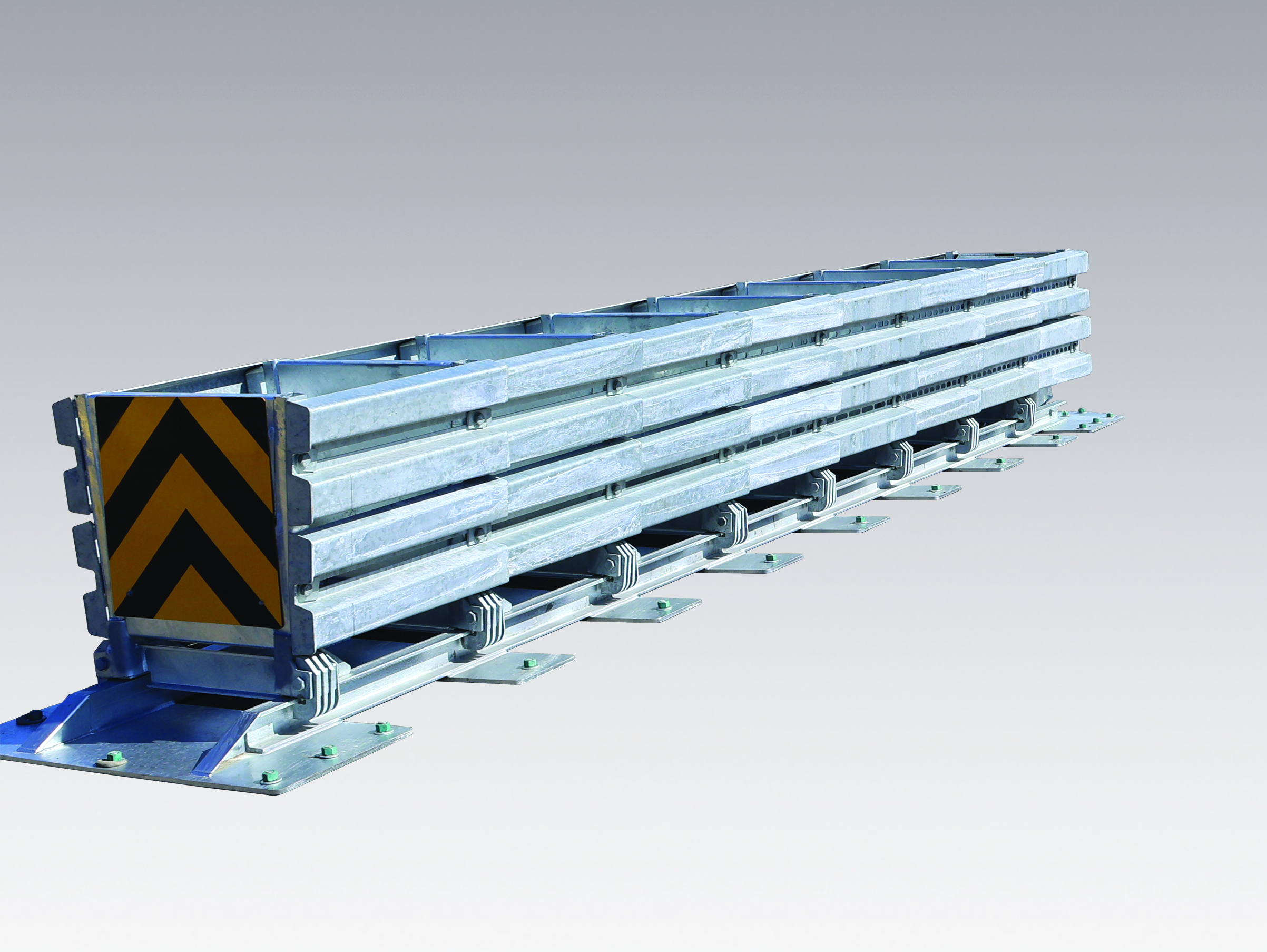

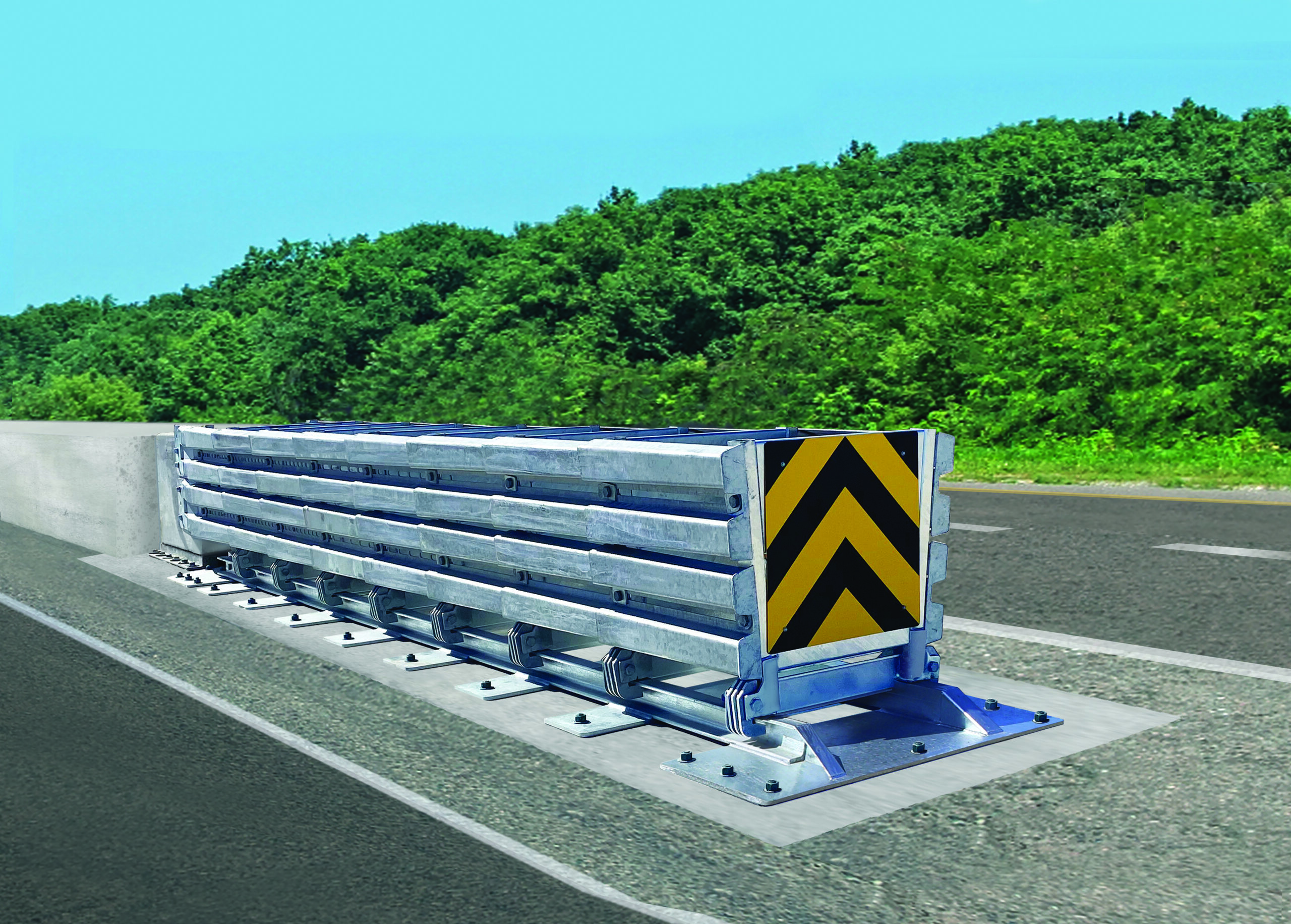

Product Images

Product Documents

PI Sheet

NOVUSTM100

Manuals

NOVUSTM100 PRODUCT MANUAL
