EuroTRACC®

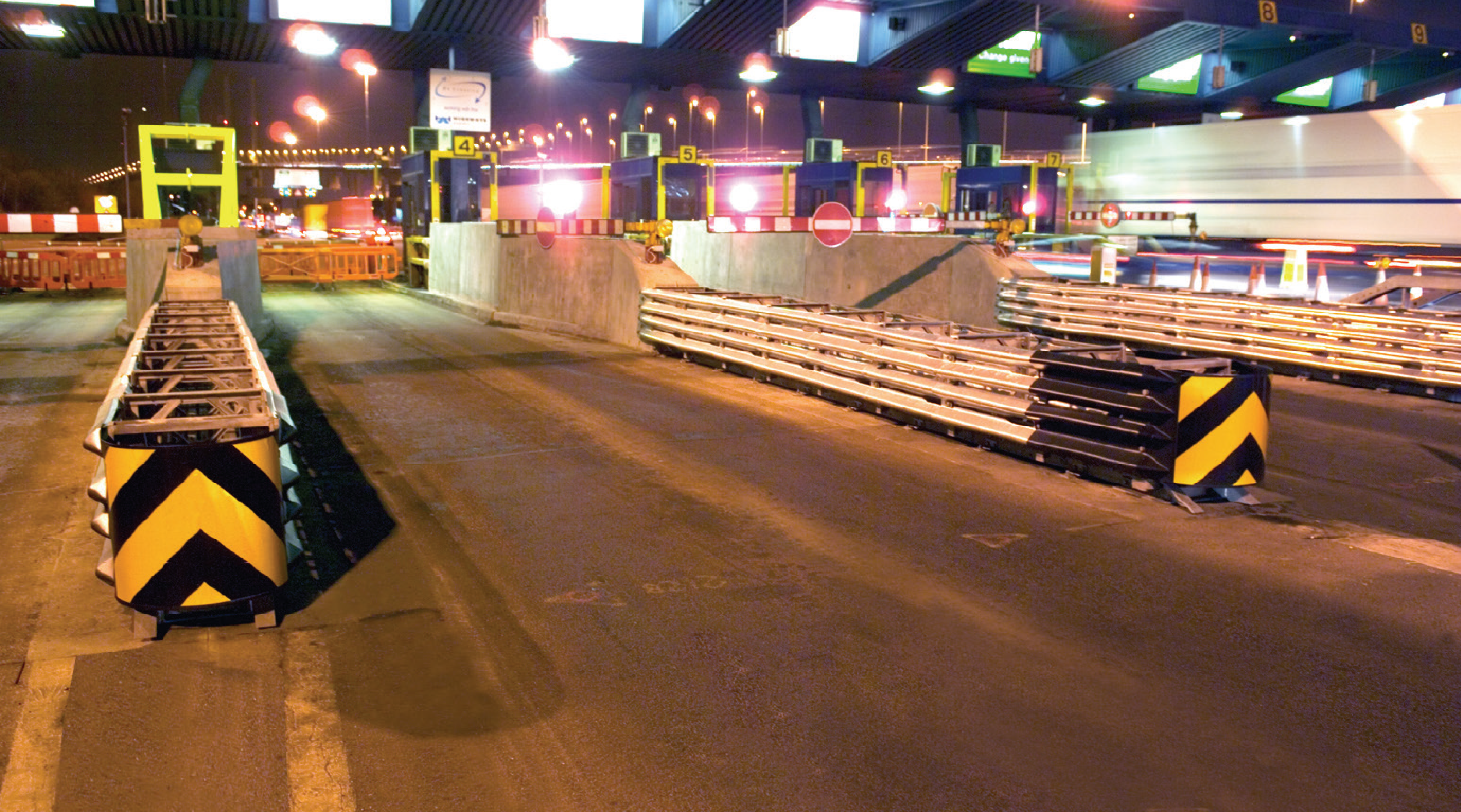

The EuroTRACC® is a redirective, energy absorbing crash cushion that can be used for unidirectional or bidirectional traffic flow applications.  It is tested to EN 1317-3. Interchangeable components help reduce repair costs for highway agencies and departments of transportation.

The EuroTRACC® can be used to shield fixed objects 610 mm to 1,800 mm wide.

Product Inquiry Form


Features

  • Galvanized, all-steel construction for durability.
  • Further tested to 110 km/h (P4), 100 km/h (P3), and 80 km/h (P2).
  • The EuroTRACC® is CE marked and has been certified by an authorized EU Notified Body.



Assembly & Maintenance

  • Can be installed on new or existing concrete or asphalt pad.
  • Open frame design helps facilitate installation, inspection, or repair.



Back-Up Structure and Attachments

  • Concrete barrier(s)
  • Bridge parapet(s)
  • Bridge pier(s)
  • W-Beam barrier
  • Thrie-Beam barrier

Specifications

Typical 110 km/h Unit

  • Length: 7.95 m
  • Width: 610 mm Min. Width and 1,800 mm Max. Width
  • Weight: 1,451 kg

Product Images

Product Documents

PI Sheet

EuroTRACC®

Manuals

EuroTRACC® Product Description Assembly Manual
